A new wave of typology is being introduced to architecture and urban planning. With city
population on the rise, units are becoming more compact. With easy accessibility to online stores and
online businesses, many are creating their own. To experiment the capability of micro-units, this
project opens up to the living with the minimum space in a micro-unit and yet still be able to fuction
efficiently.

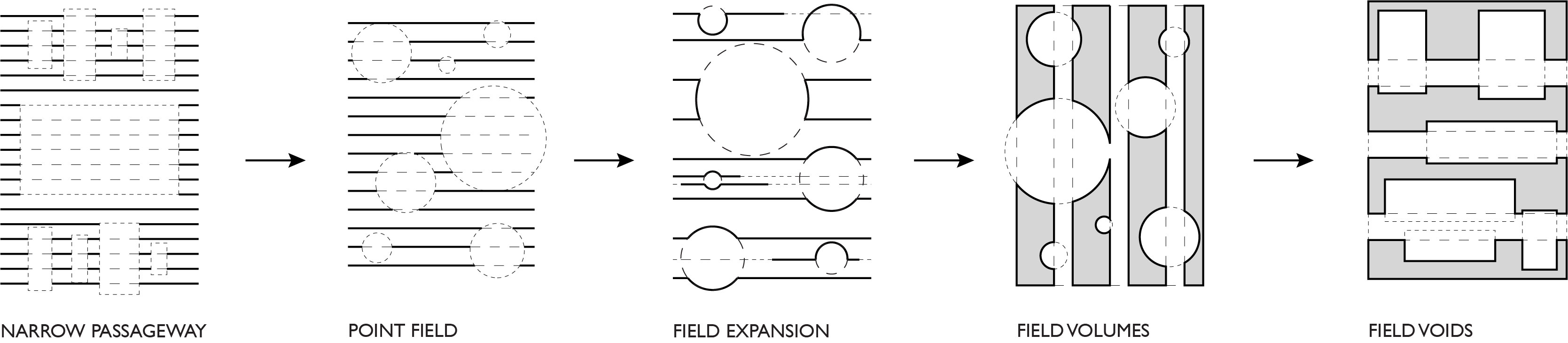

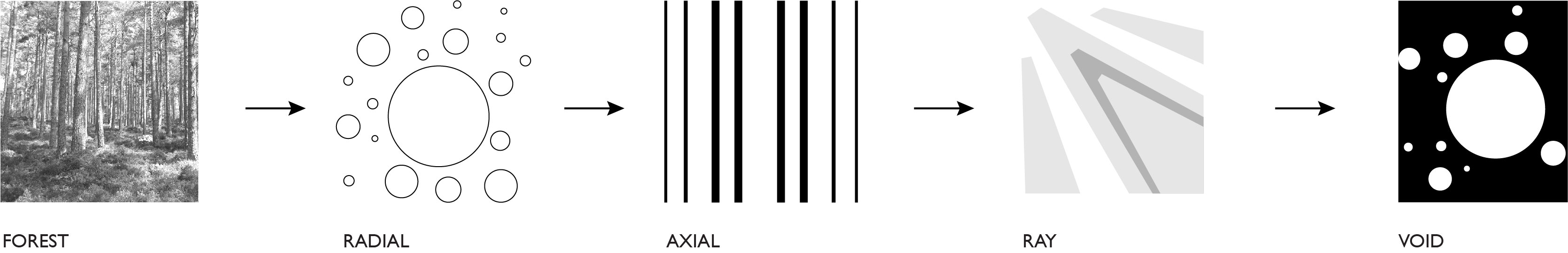

PROCESS DIAGRAMThe design of the unit started with a conceptual stage; researching anything close to nature.
This specific project started from looking into forests and overlay spacial characteristics of forests;
such radial geometric patterns or axials patterns. Then those characteristics were converted to be used
in a spatial diagram of a 600sqft area, which led to different ways to carve out usable spaces. The end

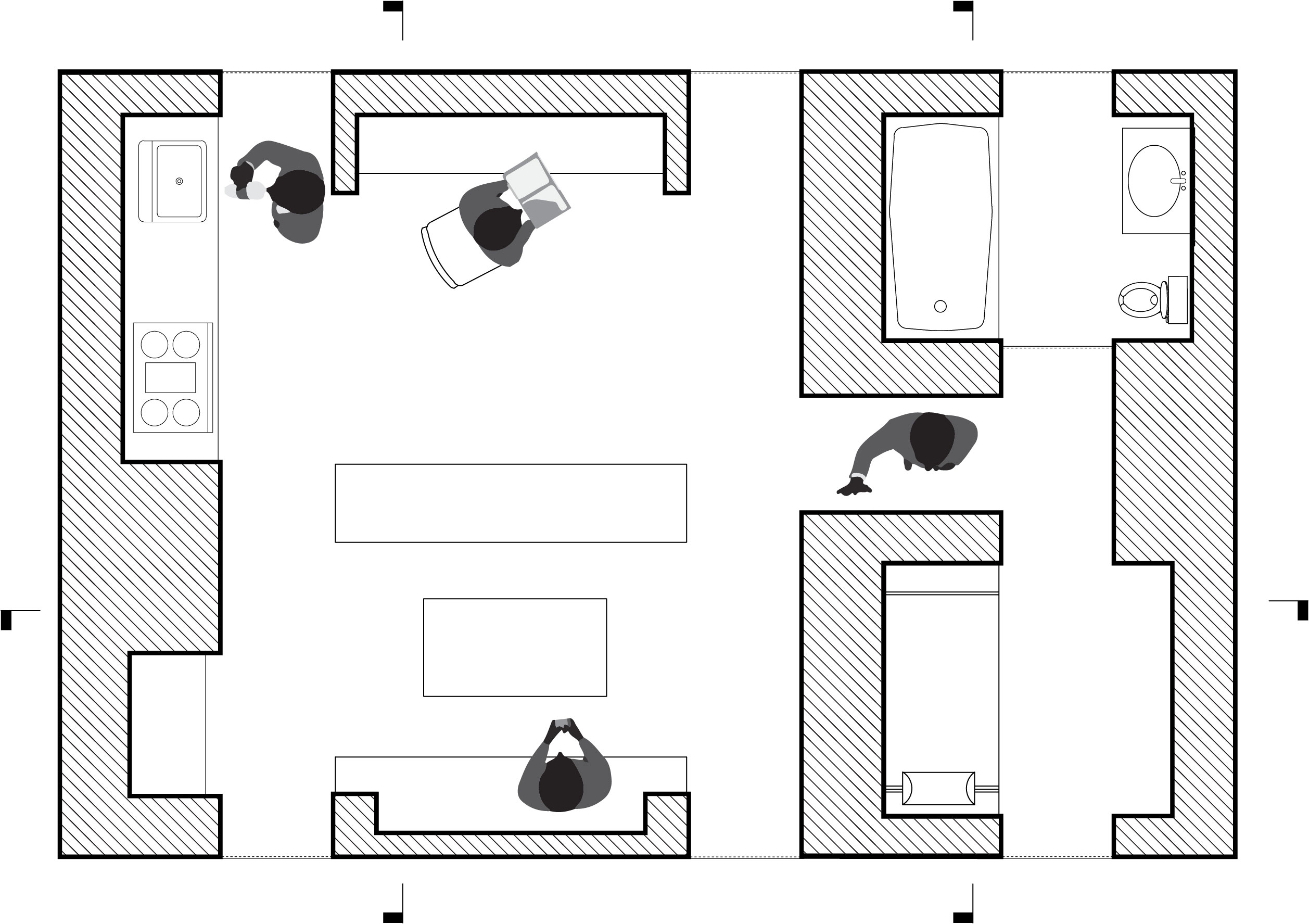

process was known as field voids, combining radial patterns with axial symmetry.FLOOR PLANPlan of the unit is fairly simple, ribbons of light separating each 'room' and in the ribbons of
program, each ribbon categorized by different activity. Cooking, working, sleeping, bathrooms. Voids in
the unit were carved in plan as well as section. The strips of light provide the lighting and shading

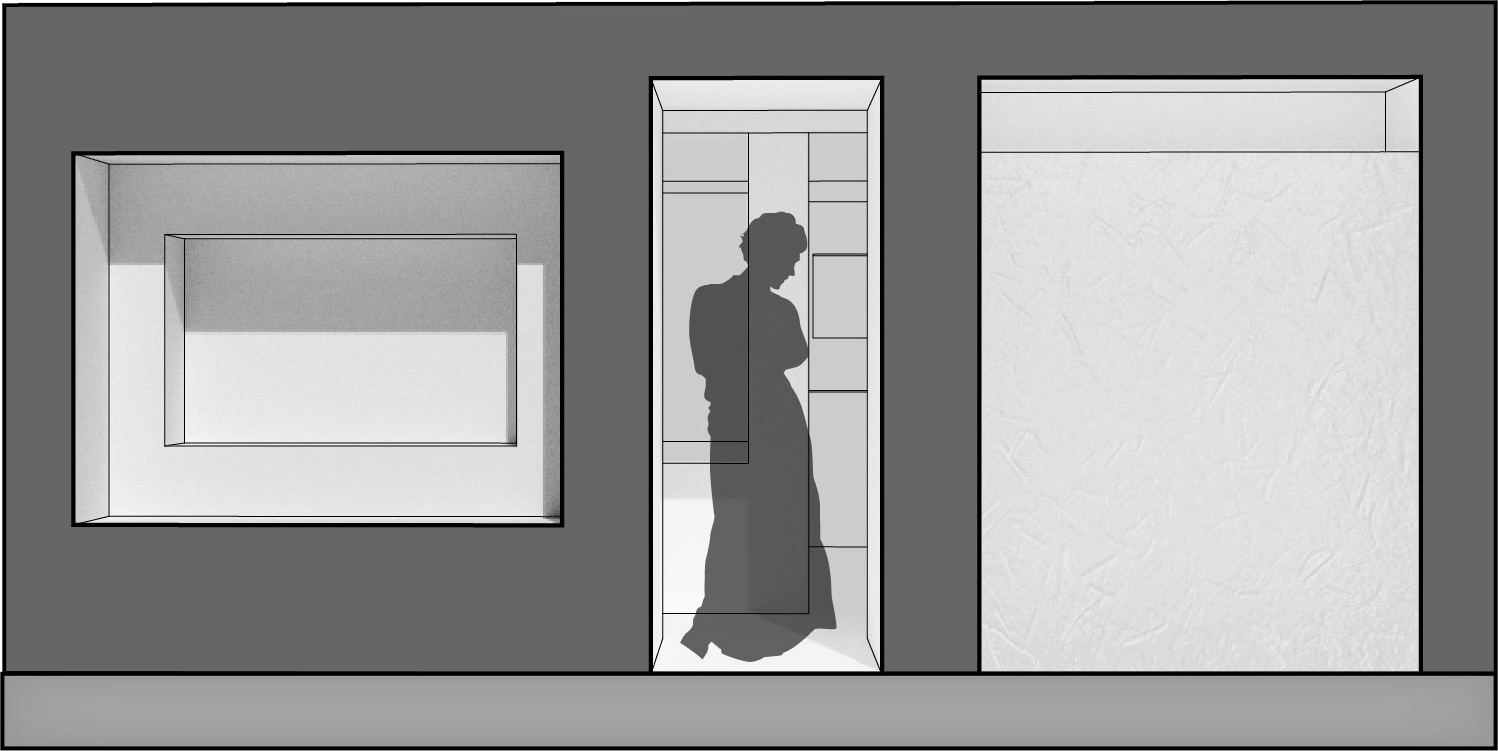

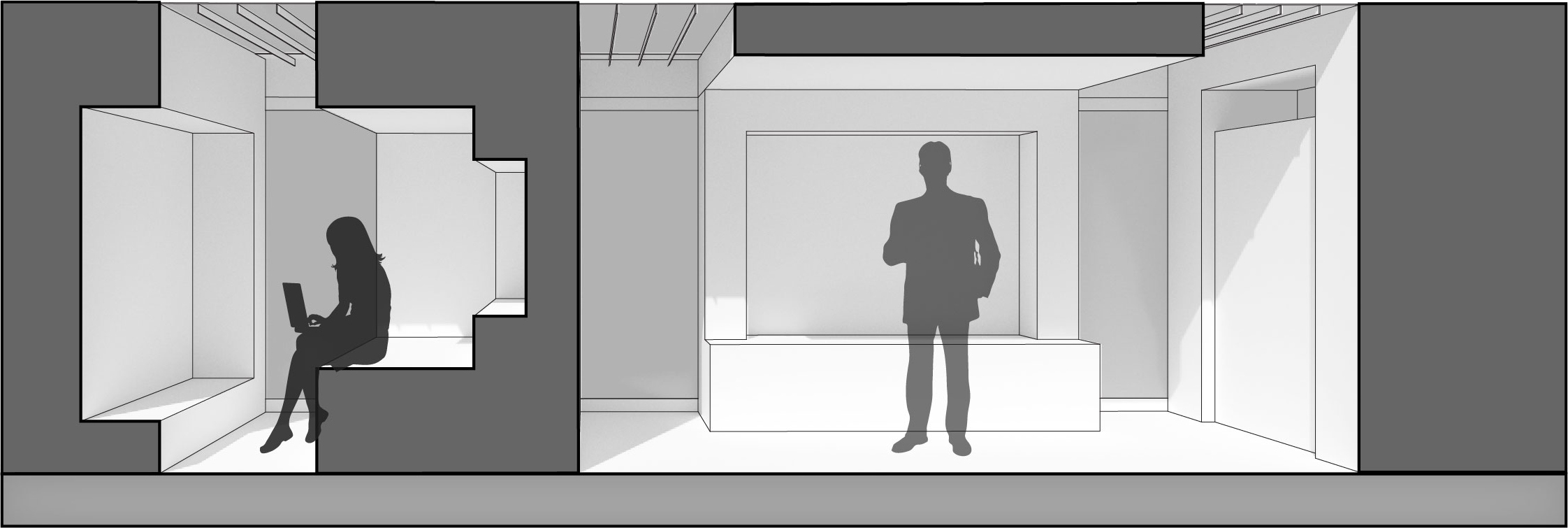

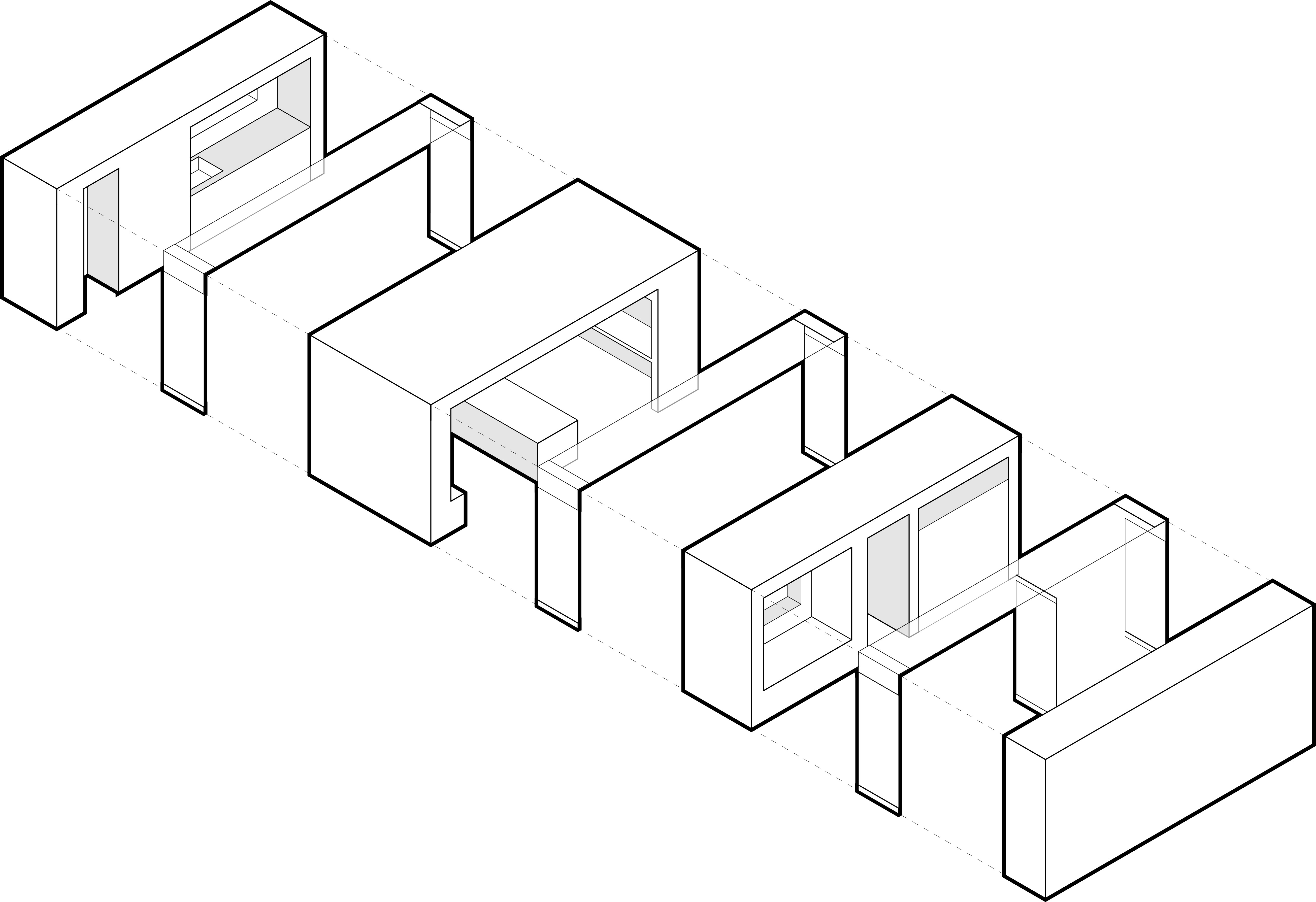

the unit needs.CROSS SECTIONAXONOMETRICLONGITUDINAL SECTION
